A yacht can present beautifully at the berth while its battery system is quietly approaching failure. Cabin lights may work, engines may start after shore charging, and a chartplotter may boot normally. None of that proves the batteries can support the vessel at anchor, start an engine after several days away from the marina, or accept charge correctly from alternators, chargers and solar equipment.

Knowing how to test yacht batteries is therefore useful for every owner, but particularly valuable during a pre-purchase inspection. Battery condition affects safety, reliability and immediate ownership cost. More importantly, weak batteries can mask broader faults in the charging system, cable installation or electrical design.

Start with safety and battery identification

Before connecting a meter or removing a cover, identify the bank arrangement and battery chemistry. A typical yacht may have separate engine-start and domestic banks, plus independent batteries for generators, bow thrusters, tender systems or emergency equipment. Trace the labels, isolators and cable routes rather than assuming every battery in a compartment serves the same purpose.

The testing method depends on whether the vessel has flooded lead-acid, AGM, gel or lithium iron phosphate batteries. Conventional voltage readings and load tests provide useful indications for lead-acid batteries, although they do not confirm usable capacity on their own. Lithium batteries require more care: their voltage remains relatively flat through much of their discharge cycle, and a battery management system may disconnect the bank before a simple meter identifies a problem.

Wear eye protection when working near lead-acid batteries. Ensure the compartment is ventilated, remove metal jewellery, keep ignition sources away, and use insulated tools. Do not disconnect a battery while an engine is running or while a charger is actively supplying significant current. This can damage charging equipment and sensitive onboard electronics.

How to test yacht batteries with a visual inspection

A visual inspection often provides the first evidence of neglect. Check each battery case for swelling, cracking, leakage, discolouration or signs of overheating. A swollen case is not a cosmetic defect. It may indicate overcharging, internal failure or excessive heat, and it normally justifies replacement.

Examine terminals and cable lugs for corrosion, loose fasteners, damaged insulation and unsupported heavy cables. Green or white deposits around terminals increase resistance and can create a voltage-drop problem that resembles a failed battery. Batteries should be firmly restrained against movement in all directions, with appropriate protection against accidental short circuits at positive terminals.

On flooded batteries, inspect electrolyte levels where the design permits access. Exposed plates can suffer permanent damage. However, do not add water indiscriminately during an inspection, and never add acid as a routine remedy. The correct level and maintenance procedure should follow the battery manufacturer’s instructions.

Also look beyond the battery itself. A hot charger, undersized cabling, poorly crimped lugs or an improvised installation can shorten the life of a new bank just as quickly as an old one. In a survey context, the installation condition matters as much as the individual battery reading.

Measure resting voltage correctly

Voltage is a useful screening tool, not a capacity certificate. For a meaningful resting-voltage check, the battery should have been disconnected from charging and significant loads for several hours. A battery tested immediately after charging may show a temporary surface charge and appear healthier than it is. A battery tested while supplying refrigeration, pumps or inverter loads may read lower than its true state of charge.

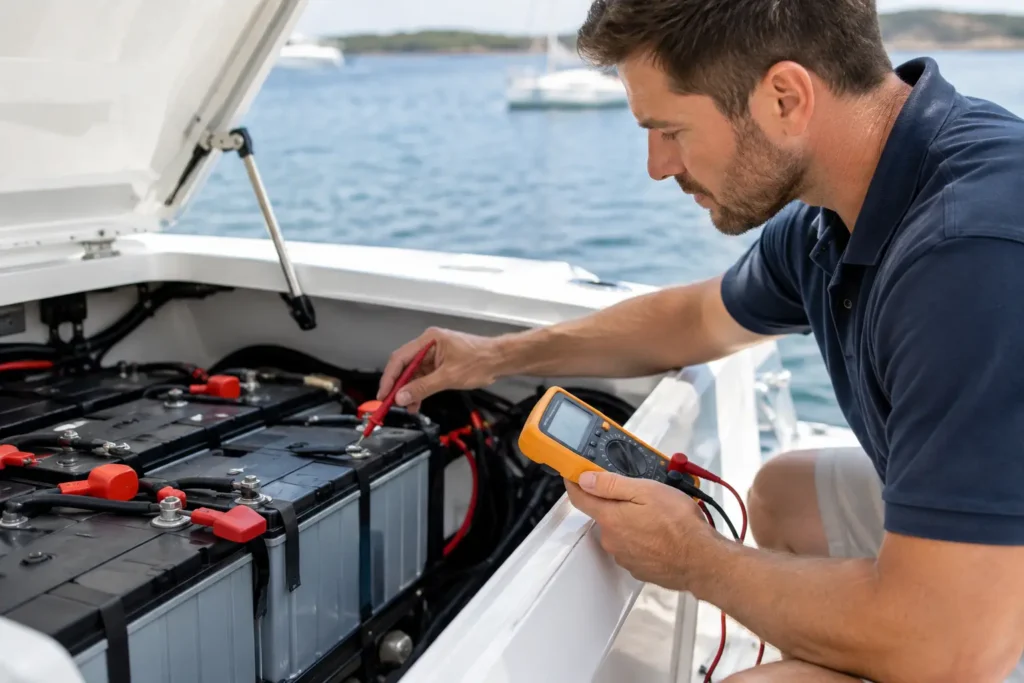

Using a quality digital multimeter, measure directly at the battery posts first, then compare the result with readings at the cable terminals and distribution panel. For a 12-volt lead-acid battery at rest, around 12.6 to 12.8 volts generally indicates a full charge. Around 12.4 volts suggests a partially discharged battery, while approximately 12.2 volts is commonly associated with about 50 percent state of charge. Readings near or below 12.0 volts deserve further investigation.

These figures are approximate. Temperature, battery type, recent use and charging history all influence the result. AGM and gel batteries may sit slightly differently, while lithium voltage cannot reliably indicate state of charge without information from the battery management system or a properly calibrated monitor.

A useful comparison is often more revealing than one absolute number. If four batteries are intended to operate as one parallel domestic bank but one reads materially lower than the others after equal charging and rest, it may be defective or poorly connected. Mixing batteries of different ages, capacities or chemistries in the same bank can also produce uneven charging and premature failure.

Check voltage drop under load

A battery may show an acceptable resting voltage and still collapse when asked to work. Apply a known load appropriate to the bank, then observe the voltage at the battery posts. On a domestic bank, this could involve a controlled load such as cabin lighting, refrigeration or an inverter load, provided the test is planned and monitored. For an engine-start battery, cranking voltage is particularly informative.

During engine starting, a healthy 12-volt start battery should not experience an excessive voltage drop. The exact acceptable figure depends on engine size, temperature, cable length and starter demand, but a rapid fall below roughly 9.6 volts is a warning sign. Measure at both the battery posts and the starter connection where practical. A large difference between those readings points to cable, terminal or isolation-switch resistance rather than battery weakness alone.

Do not repeatedly crank an engine solely to test a questionable battery. One controlled test, combined with proper diagnostic equipment, is preferable to creating heat and stress in a system that may already have poor connections.

Test capacity, not just voltage

Capacity is the key question for a domestic bank. A 400Ah bank that can only deliver 180Ah before reaching its recommended discharge limit is no longer performing as its specification suggests, even if it reaches normal charging voltage at the dock.

The most dependable capacity assessment is a controlled discharge test. First, fully charge the batteries using the correct charging profile. Allow the bank to rest as appropriate, then apply a measured, stable load while recording voltage, current and time. Stop at the manufacturer’s recommended end voltage or state-of-charge limit. Comparing the delivered amp-hours with the rated capacity reveals the practical condition of the bank.

This test takes time and should be managed carefully, especially on a yacht with refrigeration, alarm systems, bilge pumps or equipment that cannot be interrupted. For this reason, it may not always be proportionate during a limited pre-purchase survey. A professional surveyor may instead use conductance testing, charging observations, load testing and battery-monitor data to form a reasoned opinion, while recommending a full capacity test where the findings justify it.

Conductance or impedance testers are valuable diagnostic tools, particularly for engine-start batteries. They estimate battery health by measuring internal characteristics and comparing them with entered battery specifications. They are fast and non-invasive, but they are still estimates. A tester result should be considered alongside age, installation condition, voltage behaviour and actual load performance.

Verify the charging system

A battery cannot remain healthy if the charging sources are incorrectly regulated. With shore power connected, observe the charger output at the battery terminals. Check whether it enters bulk, absorption and float stages as expected for the installed battery type. An AGM profile applied to flooded batteries, or an unsuitable lithium profile, can reduce service life or create a safety concern.

Then test charging from the engine alternator. Record battery voltage before starting, immediately after starting, and after the alternator has had time to stabilise. A conventional lead-acid system commonly charges above resting voltage, often in the mid-13 to mid-14 volt range depending on regulator design and charge stage. A low reading may indicate a belt, alternator, regulator, cabling or isolation issue. An excessively high reading can cause overheating and battery damage.

If the yacht has solar panels, wind generation, a generator charger, battery-to-battery charger or inverter-charger, each source should be assessed in context. The system may perform correctly in isolation but behave poorly when multiple chargers operate together. This is particularly relevant on yachts upgraded over several ownership periods.

When battery findings matter in a purchase decision

Battery replacement itself is rarely the largest cost on a yacht, but the surrounding evidence can be significant. Corroded connections, unsupported cables, mixed battery types, chargers set to the wrong profile and absent circuit protection may indicate a wider pattern of electrical work requiring review.

Ask for battery installation dates, invoices, charger manuals and any recent capacity-test records. Batteries without dates should be treated cautiously. In the Mediterranean climate, heat and prolonged shore-power charging can materially shorten service life, particularly where ventilation and charging regulation are poor.

During a pre-purchase survey, battery findings should be documented clearly: what was tested, under what conditions, the readings obtained, and the limits of the assessment. This avoids both false reassurance and unnecessary alarm. The Blue Matter’s approach is to distinguish between a routine maintenance recommendation, a near-term replacement cost and an electrical defect that requires specialist investigation before completion.

A battery bank is not proven by a green charger light or a successful engine start at the quay. Test it methodically, read the results in the context of the entire electrical system, and let the evidence guide the next decision before that decision has to be made offshore.
